Choosing the Right Flange for High-Pressure Systems
1. Types of Flanges Suitable for High-Pressure Systems
Weld Neck Flanges
Weld neck flanges are commonly used in high-pressure systems due to their ability to handle high stresses and prevent leakage. The flange has a long neck that is welded to the pipe, ensuring a strong and secure connection. The neck also helps to distribute the stresses from the system evenly, which is why it is favored in critical, high-pressure applications such as oil and gas pipelines or pressure vessels.
Blind Flanges
Blind flanges are used to seal the end of a pipe or a valve. In high-pressure systems, they are ideal for isolating parts of the system that are not in use or for maintaining pressure within a particular section. Blind flanges are also used when future expansion is planned, providing a secure yet removable closure.
Slip-On Flanges
While slip-on flanges are easy to install and cost-effective, they are generally not the best choice for high-pressure systems. They have a lower pressure rating compared to weld neck flanges and are more prone to leakage due to their design. However, in less critical systems or situations where cost and ease of installation are more important, slip-on flanges can be used effectively.
Socket Weld Flanges
Socket weld flanges are ideal for smaller-diameter pipes in high-pressure systems. These flanges are designed to provide a strong connection, as the pipe is inserted into the flange and welded at the base. This type of flange is often used in applications involving smaller pipes that carry high-pressure liquids or gases.
Threaded Flanges
Threaded flanges are used in systems where welding is not feasible. They screw onto the pipe threads, making them an excellent choice for installations that require a quick, non-welded connection. However, threaded flanges are less reliable under high pressure and should be used with caution in these systems.
2. How to Select the Right Flange for Specific High-Pressure Applications
Oil and Gas Industry
In the oil and gas industry, flanges must be able to withstand extremely high pressures and corrosive fluids. Weld neck flanges made from stainless steel or carbon steel are often the best choice due to their strength and resistance to harsh chemicals. These flanges help maintain the integrity of pipelines that transport oil, gas, and other hazardous substances.
Chemical and Petrochemical Industry
For the chemical and petrochemical industries, flanges need to resist both high pressure and corrosive chemicals. Materials such as Hastelloy or Inconel are commonly used due to their excellent resistance to corrosion and high-pressure capabilities. Proper flange selection in these industries ensures the safety and efficiency of systems dealing with aggressive fluids.

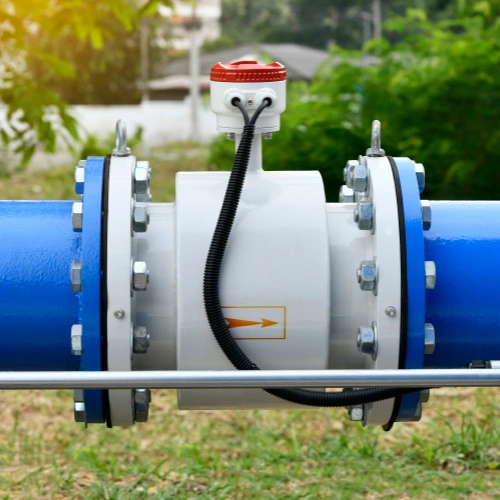

Water Treatment and Hydraulics
High-pressure systems in water treatment and hydraulics require flanges that can handle pressurized water or hydraulic fluids. Stainless steel and alloy steel flanges are often chosen for their resistance to corrosion, while their pressure ratings must be matched to the system’s specific requirements to prevent leaks or failures.
3. Flange Standards and Certifications for High-Pressure Systems
International Standards (e.g., ASME, ANSI, ISO)
It’s important to choose flanges that meet recognized industry standards. ASME (American Society of Mechanical Engineers), ANSI (American National Standards Institute), and ISO (International Organization for Standardization) are the leading bodies that set the standards for flanges. These certifications ensure that flanges are manufactured to a high quality and capable of withstanding the pressures required by the system.
Quality Assurance and Inspection
Before installation, flanges should undergo rigorous testing, including pressure tests, visual inspections, and non-destructive testing (NDT) methods. These processes help confirm that the flanges are free of defects and meet the required standards for high-pressure applications. Certification from recognized testing bodies further guarantees the flange’s suitability.
Summary of Key Considerations in Flange Selection
Choosing the right flange for high-pressure systems involves understanding the pressure ratings, material compatibility, flange types, and system-specific requirements. Proper selection ensures system safety, efficiency, and longevity.
Final Tips for Making the Right Choice
When in doubt, consult with professionals and always adhere to industry standards. Careful consideration of the factors mentioned above will help you make the right choice, ensuring that your high-pressure system functions reliably and safely.
